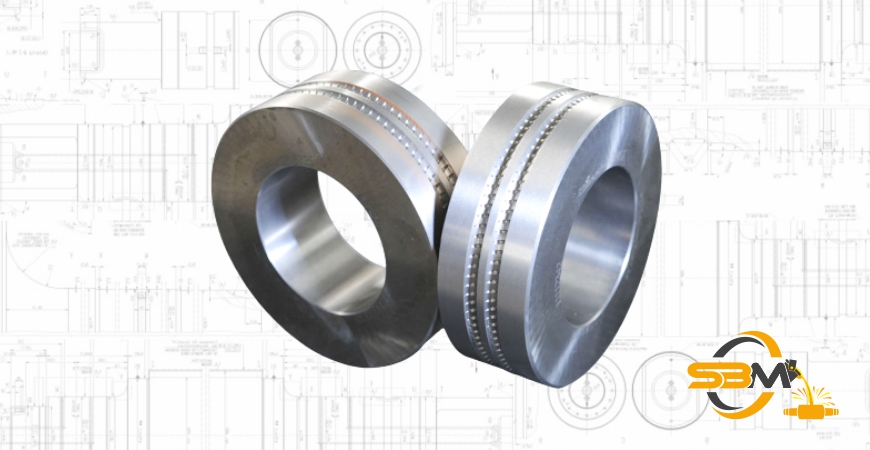

Tungsten Carbide Rings

Sai Baba Multimetals is a trusted supplier of Tungsten Carbide Rings (TC Rings) in India, offering high-performance mill roll solutions for the steel industry. Our TC Rings are designed for extended rolling campaigns, providing exceptional wear resistance, high hardness, and superior performance in demanding applications.

About Tungsten Carbide (TC) Rings

• Structural strength : Binding tungsten and carbon, it forms an extremely dense crystal structure called hexagonal crystal, whose Young's modulus is approximately 550 GPa, which is nearly two times that of steel.
• High Hardness : The hardness of tungsten carbide is "9." It boasts a level of hardness second to diamond.
• High strength at high temperature : Since it has high strength at high temperature and low thermal expansion coefficient, it is an optimal raw material for cutting tools to be used in a high-temperature and high- speed environment.
• High resistance to corrosion : Tungsten carbide is an extremely stable substance, and it does not oxidize at normal temperatures in air. In addition, it is not likely to form a solid solution with various elements, and keeps stable characteristics even in severe environments.
• Resistance to oxidation : Oxidation occurs at approximately 300°C and reaction occurs rapidly at approximately 700°C to form an oxide (WO3) when its powder is heated in an oxygen-containing atmosphere.
• Chemical resistance : Although it does not dissolve in water, hydrochloric acid or sulphuric acid, it dissolves in nitric acid.
• Reactivity : Reacts with chlorine at 400°C or higher. Reacts with fluorine at 18°C.

Why Choose Our TC Rings in India?

• Extreme Hardness : Ensures durability and extended service life.
• Corrosion & Wear Resistance : Suitable for high-speed rolling mills.
• Precision Engineering : Designed for wire rods finishing blocks and shaping applications.
• Custom Binder Composition : Available in WC-Co alloys and corrosion-resistant Co-Ni-Cr binders based on mill requirements.

Tungsten Carbide Rings are used in the manufacture of mill rolls & wire flattening for extended life in applications where long rolling campaigns are required. Their extreme hardness makes them suitable for wire rods finishing blocks and some shaping applications. Tungsten carbide roll required by steel mills. It is mainly divided into four categories: high- speed wire rod roll, new generation high speed wire rod hot-rolled roll, new generation high-speed wire rod review roll, and cold-rolled three-dimensional roll.

The roll has good thermal conductivity, high wear resistance, corrosion resistance, and good general performance. It can obviously reduce the depth and width of hot cracks in the groove during rolling, and reduce the risk of roll cracking.

The new generation of high-speed wire rod hot mill roll has higher impact resistance, thermal fatigue resistance, and high wear resistance compared with high-speed wire hot rolling roll. It is suitable for high-speed wire rod rolling with speed over 100 m / s.

The new generation of high-speed wire rod composite roll can greatly reduce the number of grooves changing and roll changing, reduce the labour intensity, improve the labour production efficiency, improve the surface quality of rolled products, and the percentage of finished products, so as to obtain remarkable economic benefits.

Cold rolled ribbed still bar is rolled by cold rolling three-dimensional roller. The surface appearance of the steel bar is beautiful, the dimension precision is high, and the rib mark is clear. At the same time, the performance of the ribbed steel bar is changed and the strength is improved. The rolling capacity is 800-1500 tons, which is 20-50 times higher than that of common tool steel.

TC roller can be used repeatedly, which can greatly reduce the cost and significantly improve efficiency and efficiency. In addition, we also provides roller maintenance services to customers.

Various Types of Tungsten Carbide Rings with Chemical Composition and Physical Properties

Wc%	Co / Ni / Cr %	Density gm/cm cube(+/-0.15)	Hardness HRA (+/-0.15)	Transverse Rupture Strength ≥N/mm2
92	8	14.7	88.0	2800
90	10	14.5	87.5	2750
88	12	14.2	86.0	2700
85	15	14.1	85.0	2650
82	18	13.7	83.5	2650
80	20	13.5	83.0	2600
75	25	13.1	81.0	2500
70	30	12.7	80.0	2400
68	32	12.5	79.0	2400

Inspection Process

• Raw material inspection by Inductive Coupled Plasma Emission Spectrometer(ICP)
• In process inspection by experienced and qualified inspectors
• Internal Crack checking by Ultrasonic fault detector
• Dynamic balance checking by digital method
• Final dimensional inspection by Co-ordinate Measuring Machine
• Final Metallurgical structural inspection by Metallographic Microscope
• Hardness inspection by Digital hardness checking Method before dispatch

Applications of Tungsten Carbide Rings in India

Our TC Rings in India are widely used in:

• Wire Rod Finishing Blocks
• Structural Mills & Shaping Applications
• Rebar Rolling & Hot Strip Mills
• Precision Steel & Non-Ferrous Rolling

Best TC Rings Supplier in India – Unmatched Quality & Performance

As one of the leading TC Rings suppliers in India, Sai Baba Multimetals ensures that our Tungsten Carbide Rings in India meet the highest industry standards. Our cemented carbide rings are manufactured with advanced processes, ensuring high toughness, superior thermal stability, and optimal rolling performance.

Get the Best TC Rings in India from Sai Baba Multimetals

If you're looking for reliable TC Rings suppliers in India, Sai Baba Multimetals is your go-to source for high-quality Tungsten Carbide Rings in India.
